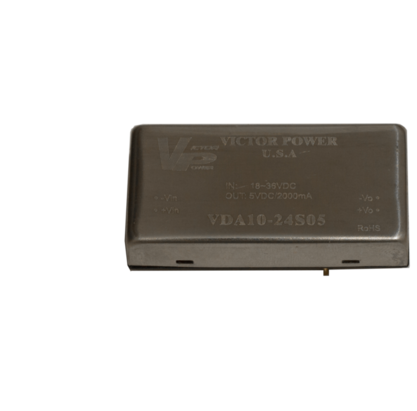

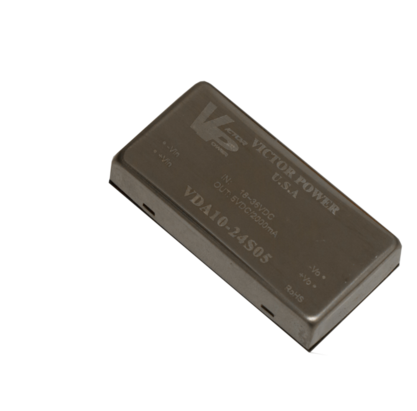

VDA10

FEATURES

10W

-2:1 Input Nominal

            12VDC: 9~28VDC

​            24VDC: 18~36VDC

            48VDC: 36~72VDC

- 4:1 Input Nominal

            24VDC: 9~36VDC

            48VDC: 18~72VDC

-Efficiency up to 83%

​- Temperature Range: -40°C~+ 85°C

- 1" x 1" x 0.44" (25.4x25.4x.11.2mm)

- 1500VDC Isolation

- Metal Shielding Package

- No Heat Sink Required

- Industry Standard Pin out

​- RoHS
